Name: Triple 'Free-Standing' Rainwater Filtration &amp; UV + 78LPM Self-Priming Pump
SKU: 11917
Price: 5995.00 AUD
Availability: InStock

Product Description

FILTATANK FT-300UVP With Grundfos CMB-SP 5-47 Pressure Pump

Triple 20″ x 4.5″ Whole House Rainwater Filter Systems remove unwanted sediment through a 10-micron polyester pleated cartridge, followed by a 5-micron poly spun cartridge to remove finer silt particles, before filtering through a 5-micron silver impregnated carbon cartridge to remove colour, taste and odour. Silver is used to inhibit the growth of bacteria on the cartridge. The spun cartridge helps extend the workable life of the carbon cartridge. Pressure gauges indicate water inlet and outlet pressure and a Viqua Ultraviolet Steriliser kills 99.9% of bacteria that may be present in the water supply.

The unique ‘Free-Standing’ galvanised support frame supports clear filter housings and is fully plumbed with 25mm stainless steel pipework. Supplied with a polyethylene weather protection cover. All systems come fully assembled ready to go.

FT-300UV-P-Triple-Free-Standing-with-UV-and-Grundfos-CMB-5-46-pump-Large-Version

Includes Built in Grundfos CMB-SP 5-47 Multi-stage Pressure Pump for Above or Below Ground Water Tanks

The Grundfos CMB-SP 5-47 Pressure pump is ideal for large single or two story homes and light commercial applications. The 0.9kW pump is very powerful for its size delivering 38m of head pressure and max flow of 78-litres per minute. The PM2 pressure manager allows the pump to start and stop automatically according to demand and protects the pump from dry running. The pump features anti cycling alarm (leak protection), 304 stainless steel pump shaft along with a 2-year warranty.

With a suction lift of up to 8 metres (with a foot valve installed) and self-priming up to 4 metres, the CM Booster Self-Priming is ideal for pressurising water from above or underground ground water sources. All wet area parts are made from high quality, corrosion resistant stainless steel to ensure the longest life possible

WHAT MAKES FILTATANK FILTRATION SYSTEMS THE BEST CHOICE?

Filtatank rainwater filtration systems are made from the highest quality components available on the market to provide a superior quality product that is very simple to maintain and operate.

Designed to remove sediment and harmful bacteria such as E-Coli, giardia, Salmonella, Campylobacter and cryptosporidium which can easily be transferred through animal faecal matter from birds, possums and vermin that may come into contact with the rainwater supply.

The young, the elderly, and those with compromised immune systems are among the most susceptible to infection because their intestines are less resilient to the effects of bacteria. UV offers a safe, chemical-free solution to keep these vulnerable individuals safe from harmful microorganisms that may be present in the rainwater supply.

Superior System Quality, Warranty & Performance

Each Filtatank rainwater filtration system is hand-built and assembled in Australia by the team at The Tank Doctor. With over 15-years experience selling and installing rainwater filtration systems, you are assured of an extremely high quality product with excellent after sales support.

Components are individually laser cut, folded, welded and assembled by Australians using Australian materials. We use only the very best quality components in each filtration system with Viqua UV systems sourced from Canada and patented Italian made filter housings.

Proven to work and last the test of time Viqua UV chambers carry a huge 10-year warranty from a company that has been in business for over 35-years.

Why would you trust the health of your family with anything less!

FT-300UV-P-Triple-Free-Standing-with-UV-and-Grundfos-CMB-5-46-pump

System support frame designed and built in Australia from galvanised steel with painted finish
Patented, Italian made, clear Atlas filter housings. Watermark approved.
Dual stainless steel pressure gauges indicate accurate water inlet and outlet pressure across the filtration system
Fully plumbed with high quality 316 stainless steel components
Water inlet and outlet isolation taps along with a handy flush tap
Protected with a lockable polyethylene cover makes the unit tough and durable for the Australian climate
Kills 99.9% of bacteria and viruses through exposure to UV light which eliminates their ability to reproduce
Huge 10-year Viqua UV chamber warranty.

Unique Clear Filter Housings for Quick & Easy Inspection

Unique clear filter housings allow quick and easy visual inspection of the filter cartridge condition at all times. Clear housings are only possible thanks to the polyethylene protection cover which keeps the filter system out of direct sunlight.

Atlas Triple Clear filter housings cutout

Patented Design

Filtatank systems use the very best quality Italian made, Watermark approved filter housings. Patented one-piece housing tops ensure leak-free connection between housings with extreme rigidity and structural strength across the whole filtration system.

With a pressure rating of 120psi and 3-year warranty, the filter housings surpass all other systems with ease.

Watch the Clear Filter Housings in operation

Sterilisation by Viqua + 10 year UV Warranty

Viqua is proud to be the world’s largest supplier of residential certified UV water disinfection systems. With more than 40 years of experience in the residential UV business, the expertise and care that goes into the development of Viqua products is second to none. Viqua ultraviolet technology will disinfect your drinking water, ensuring 99.9% of bacteria are destroyed, keeping you and your family safe from microbiological contaminants.

Viqua uses the most advanced UV technology on the market and is designed to provide you with years of trouble free operation with minimal maintenance required. The systems are backed by a 10-year limited warranty for the UV chamber.

Watermark Approved # 040316 AS/NZS 3497 Compliant

Simple to maintain & operate

Filtatank systems include stainless steel water pressure gauges that indicate inlet and outlet pressure across the filtration system. This is helpful to indicate when the filtration cartridges require servicing or replacement. Usually the filter cartridges are replaced on an annual basis, depending on the volume of water usage and the quality of the water supply.

Viqua UV systems use a custom connection plug with built-in earth leakage and safety features meaning the lamp cannot be activated when out of the chamber protecting the user’s eyes from harmful UV light.

The UV lamp is replaced on an annual basis to ensure the correct wavelength of light is being delivered. The UV ballast power supply has a handy digital day count down timer and buzzer to indicate when lamp replacement is required.

Pressure-guages-whole-house-rainwater-filtration-system-2048-x-1465-72dpi-low

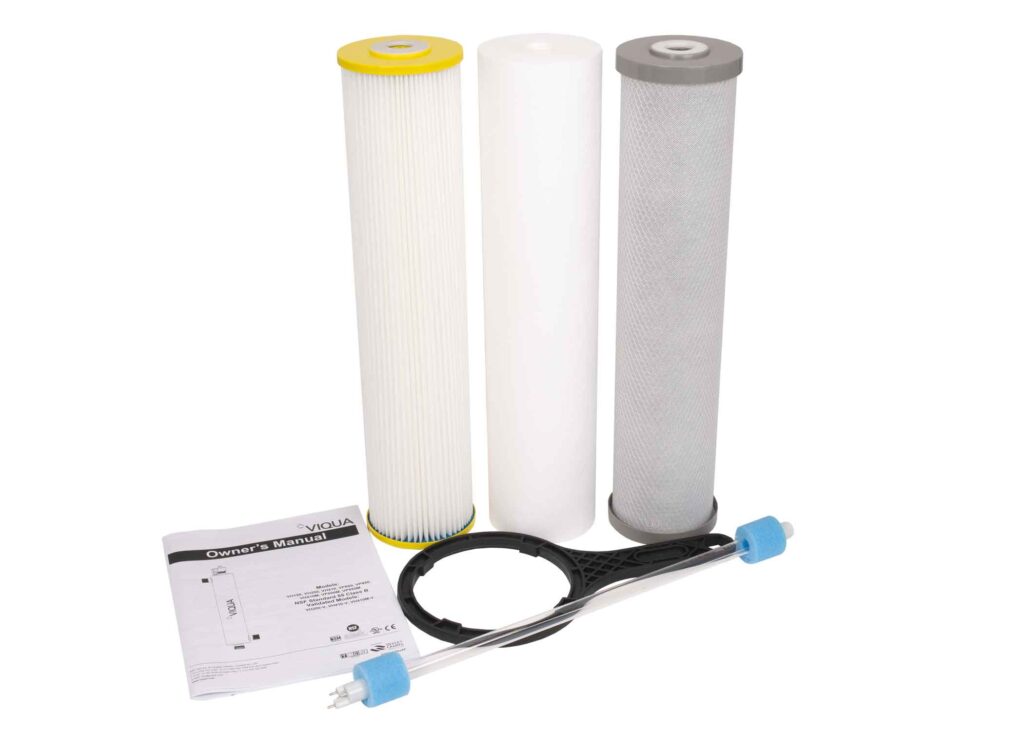

WHAT'S INCLUDED

1 x 10 Micron Polyester Pleated cartridge for dirt and sediment removal

1 x 5 Micron Polyester Spun cartridge for finer silt particle removal

1 x 5 Micron Silver Carbon Block for colour, taste and odour removal

1 x Filter housing opening handle

1 x 60w genuine Viqua UV lamp

2 x User manual

FREE SYSTEM SHIPPING AUSTRALIA WIDE*

*(Limited to most metropolitan districts at our discretion)

Triple-20-x-4.5-rainwater-filter-cartridges-with-opening-handle-+-user-manual

THE DIFFERENCE BETWEEN TWIN & TRIPLE FILTERS

The difference between the Filtatank Twin and Triple cartridge rainwater filtration system is the addition of a 5-micron poly spun filter cartridge (in stage two of the triple system). This cartridge is designed to capture finer particles following the 10-micron pleated first stage cartridge. This will protect the silver carbon cartridge which is only designed to absorb colour, taste and odour and doesn’t prefer a lot of dirt particles.

The twin system is ideal for the standard size family home with decent quality rainwater. If the water is quite dirty and brown in colour and there is a high demand on the filter system then we recommend installing the triple cartridge filter system.

Twin-20-x-4.5-rainwater-filter-cartridges-with-silver-carbon-block

Triple-20-x-4.5-rainwater-filter-cartridges-with-silver-carbon-block

Fully Assembled System for Quick & Easy Installation

Quick and easy installation of Filtatank systems is thanks to the unique ‘Free-Standing’ filter frame designed and made in Australia. Each system is ‘Plug and Play’, fully plumbed and ready to go. Systems can be installed next to rainwater tanks, out in a paddock or next to the house making Filtatank systems a brilliant option for all different applications. They can even be quickly and easily transported to different locations such as building or mining sites where on-site water filtration is required. We recommend installation to be completed by a licensed plumber.

All that is required is a flat base prepared and plumbing connection to the 25mm inlet and outlet water ports. Usually the power supply to the pressure pump can be shared to connect the UV system and the system is fully operational!

Each system includes a lockable polyethylene weather protection cover which is tough and durable to protect the system from the harsh Australian climate.

System dimensions: 1250mm W x 600mm D x 910mm H

Filtatank-FT-300UV-Whole-House-Rainwater-Filtration-system-Poly-Cover-2048-x-1365-72dpi-low

Filtatank-FT300UV-Whole-House-Rainwater-Filtration-System-low

What is the ongoing maintenance required and costs involved?

The Filter Cartridges and Ultraviolet lamp need to be replaced every 12 months to ensure protection against disease-causing microorganisms such as bacteria and viruses. Replacements are available through our online store for delivery Australia wide.

Replacement Cartridges 20″ x 4.5″ (Silver Carbon) for Whole House Triple System with Viqua UV lamp.

Fabrication of the filter system components by Atlas Filtri in Italy

Filtatank Free-Standing System Installations (Non-pump version shown)

Triple-cartridge-free-standing-rainwater-filtration-sysem-with-UV-sterilisation-installed

'Free-Standing' Filtration System installed near the Rainwater Tank

'Free-Standing' Filtration System installed where the rainwater arrives at the house

Additional information

Specifications

System dimensions: 1250mm W x 600mm D x 910mm H
Maximum Filter Housing Flow Rate: 24 GPM (90 lpm) (5.4 m³/hr)
• Stage 1: 10 Micron Polyester Pleated cartridge for dirt and sediment removal
• Stage 2: 5 Micron Polyester Spun cartridge for finer sediment removal
• Stage 3: 5 Micron Silver Carbon Block for colour, taste and odour removal
• Stage 4: Water sterilisation through Viqua VH-410 U.V. system
Disinfection Flow Rates:
16mJ/cm² 34 GPM (130 lpm) (7.8m³/hr)
30mJ/cm² 18 GPM (70 lpm) (4.2m³/hr)
40mJ/cm² 14 GPM (54 lpm) (3.3m³/hr)
BA-ICE-CL ballast controller kit 100-240V with digital LED day ‘count down’ timer display, audible and visible alarm
Power Consumption: 60W
Operating Temperature: 2-40°C (36-104°F)
Maximum Operation Pressure: 120psi (8.3bar)
Connection Size: Inlet / outlet 1″ BSP

All Systems include the following as standard:
• Filter Housing Opening Handle
• User Manual
• Filter cartridges
• Genuine 60W Viqua UV lamp

Benefits of UV Sterilisation
• Safe and Chemical-free
• Easy to service
• Economical and energy efficient
• No effect to the taste of water
• Addresses broader range of pathogens than chlorine. Some bacteria like Cryptosporidium and Giardia can be resistant to chlorination.
Warranty:
• 3- year electrical system and filter housing warranty
• 5- year system structural warranty
• 10- year Viqua U.V. chamber warranty

Grundfos Pump Specs:

Suction lift: maximum 1 m, including inlet pipe pressure loss at a liquid temperature of 20 °C (not self-priming).

Controls:
Type of connector: No plug

Liquid:
Pumped liquid: Water
Liquid temperature range: 0 .. 60 °C
Selected liquid temperature: 20 °C
Density: 998.2 kg/m³

Technical:
Rated flow: 4.7 m³/h
Rated head: 38.6 m
Code for shaft seal: AVBE
Approvals: CE,CN ROHS EXE
Return valve: YES
Start pressure: PM2
Tank volume: NONE l

Materials:
Pump housing: Cast iron
EN 1561 EN-GJL-200
ASTM A48-30B
Impeller: Stainless steel
EN 1.4301
AISI 304

Installation:
Maximum ambient temperature: 55 °C
Maximum operating pressure: 10 bar
Pipe connection standard: ISO 228-1
Type of inlet connection: Rp
Type of outlet connection: G
Size of inlet connection: 1 1/4
Size of outlet connection: 1
Pressure rating for connection: PN 10

Electrical data:
Rated power – P2: 0.9 kW
Mains frequency: 50 Hz
Rated voltage: 1 x 220-240 V
Maximum current consumption: 5.4-5.0 A
Rated speed: 2750-2790 rpm
Enclosure class (IEC 34-5): IP55
Insulation class (IEC 85): F
Built-in motor protection: TP 211
Length of cable: 1.5 m
Power plug: No plug

Others:
Net weight: 16.3 kg
Gross weight: 19.8 kg
Environmental approvals: WEEE

Triple ‘Free-Standing’ Rainwater Filtration & UV + 78LPM Self-Priming Pump
